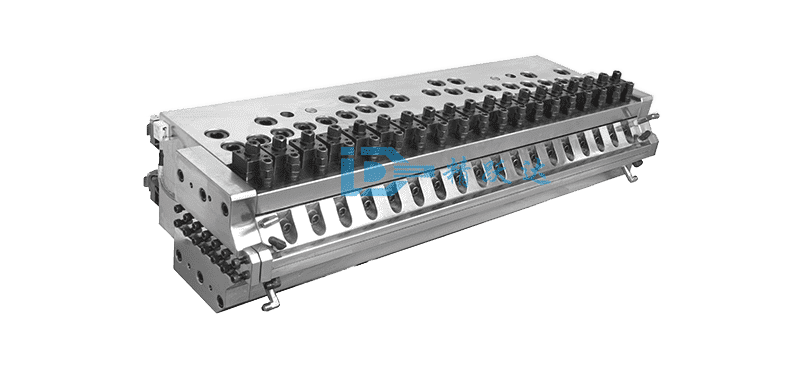

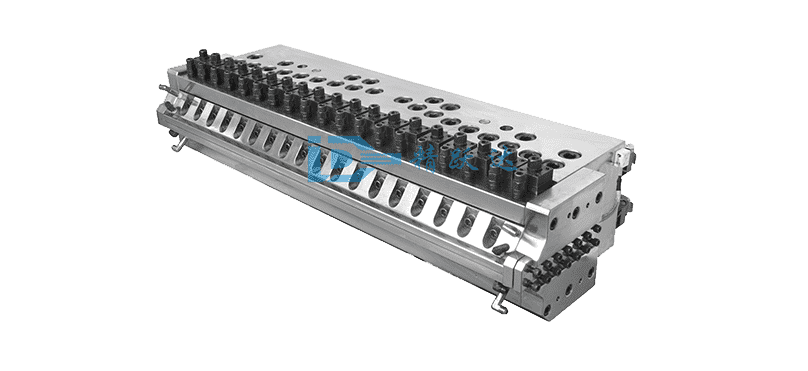

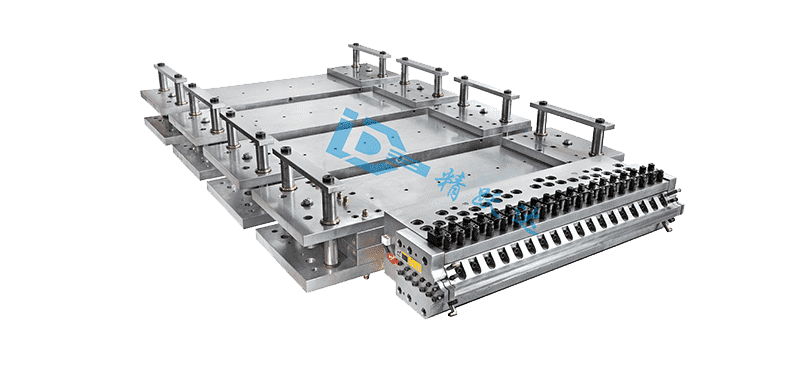

PVC Foaming Die

• Streamlined runner is customized on the basis of computer simulation optimization of various materials to result in a continuous unobstructed flow surface.

• The gap of movable die lip can be varied to meet the needs of different thickness products.

• Equipped with a flow regulating device to enable larger range  adjustment of material viscosity, and prompt adjustment and optimization  of the lateral uniformity of thickness.

• The die lip is designed with a special angle to shorten the distance between the lip outlet and the roller, and satisfy the technical requirements of more products.

Unstable temperature causes unstable foaming. The die lip with constant temperature control device ensures the yield of foaming  products.

• The surface is all hard chrome plated, and the fasteners are made of 12.9 high-strength bolts.  Heating is set under control in zonal manner by high-quality stainless steel heating rods.

• Customizable insulation to reduce heat loss and minimize production costs.

• Combined die, simple in structure, easy to disassemble and clean.

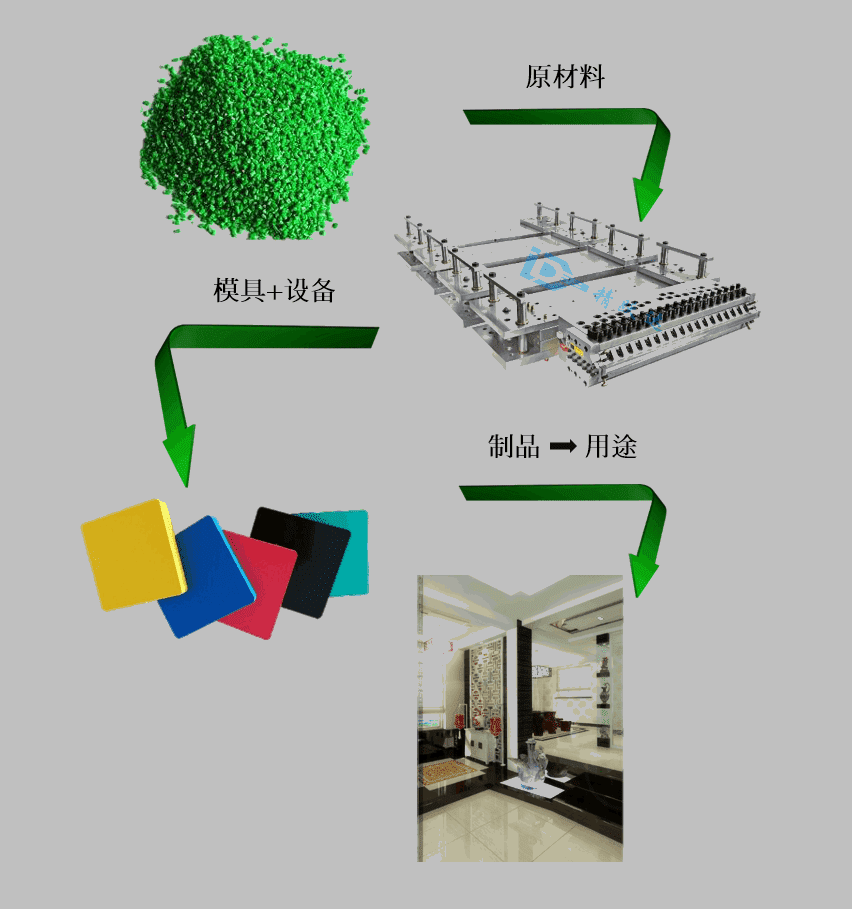

Application


Parameter

• Fit for foaming of PVC+ wood powder.

• Die width is 400mm-3000mm.


Application

Parameter

• Fit for foaming of PVC+ wood powder.

• Die width is 400mm-3000mm.
